CAPITAL ONE : THE CLOUD
LaGUARDIA AIRPORT
SHOP ASSEMBLY
INSTALLATION
COMPLETED

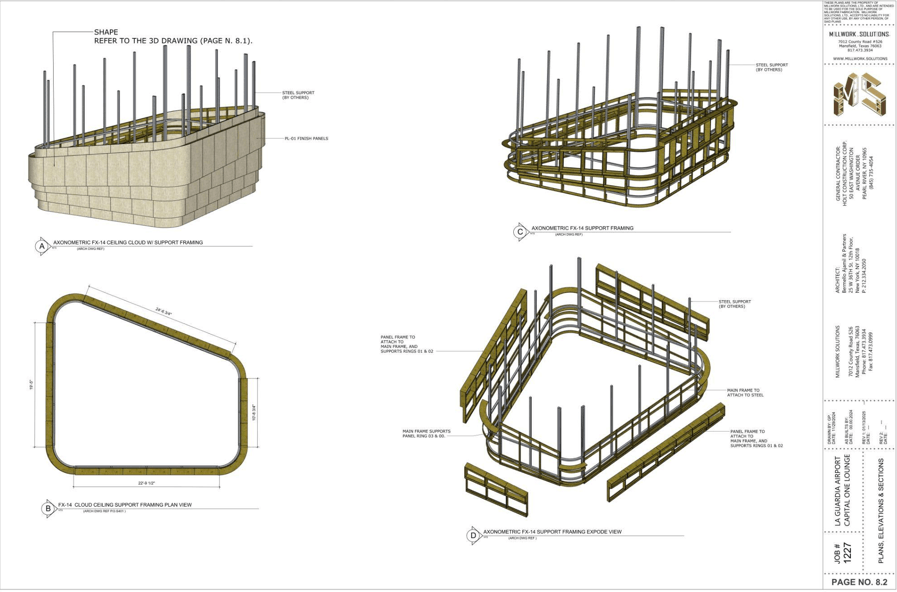

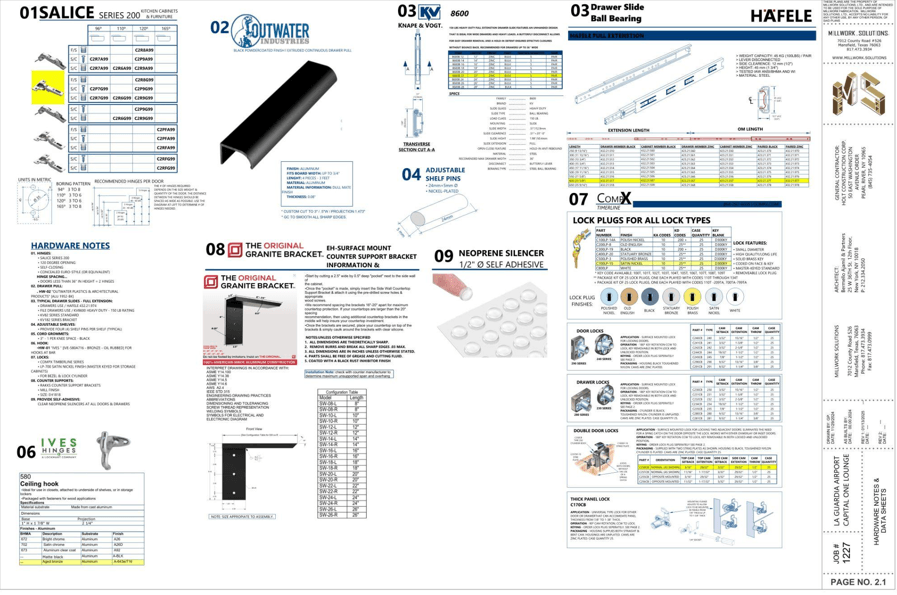

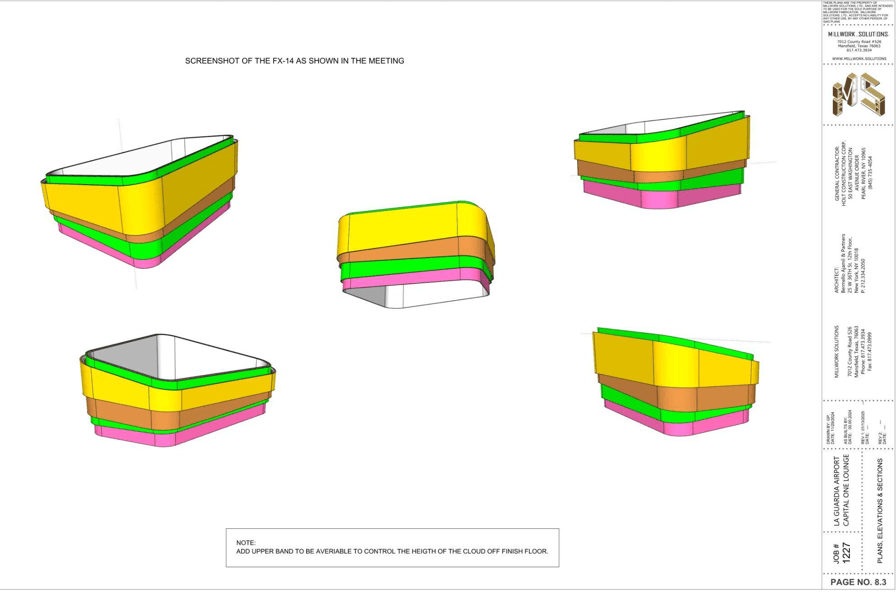

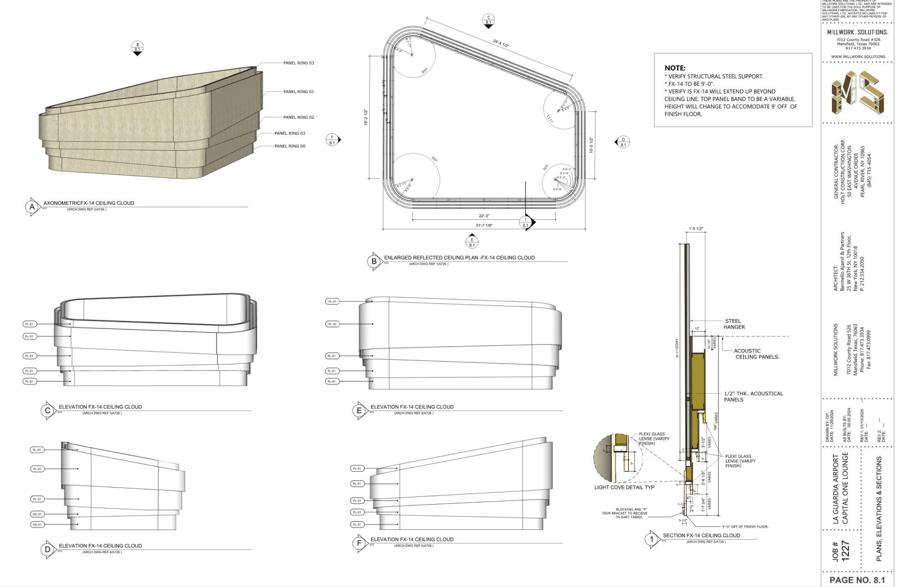

MILLWORK SHOP DRAWINGS: PHASE 1
CAPITAL ONE : THE CLOUD
*All drawings derive from 3D models, presented in meetings which are then created into DXF parts to cut on a CNC router

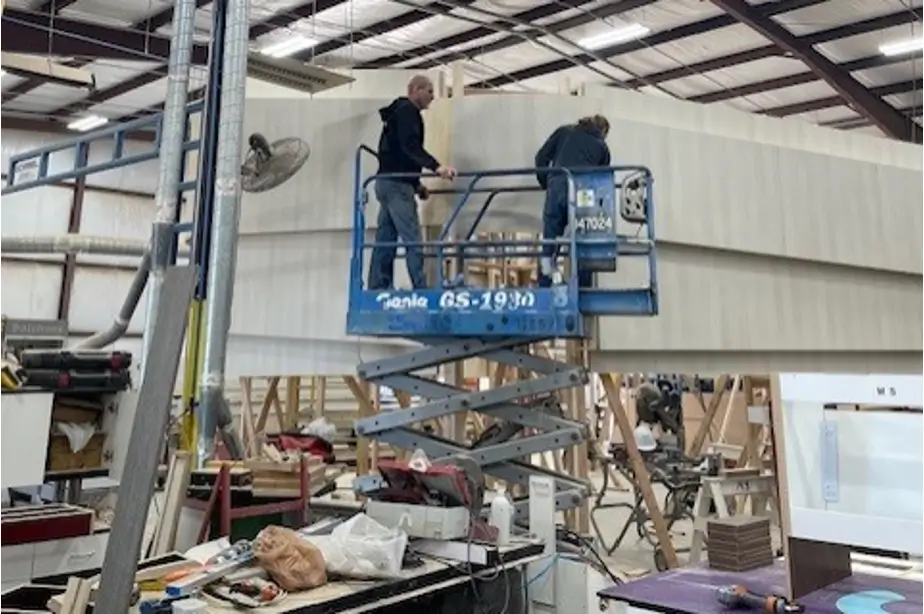

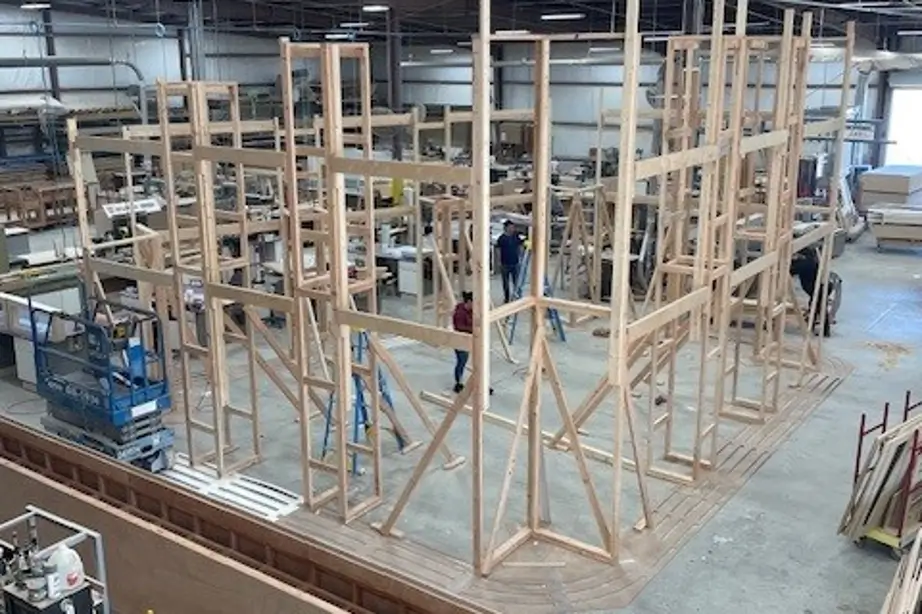

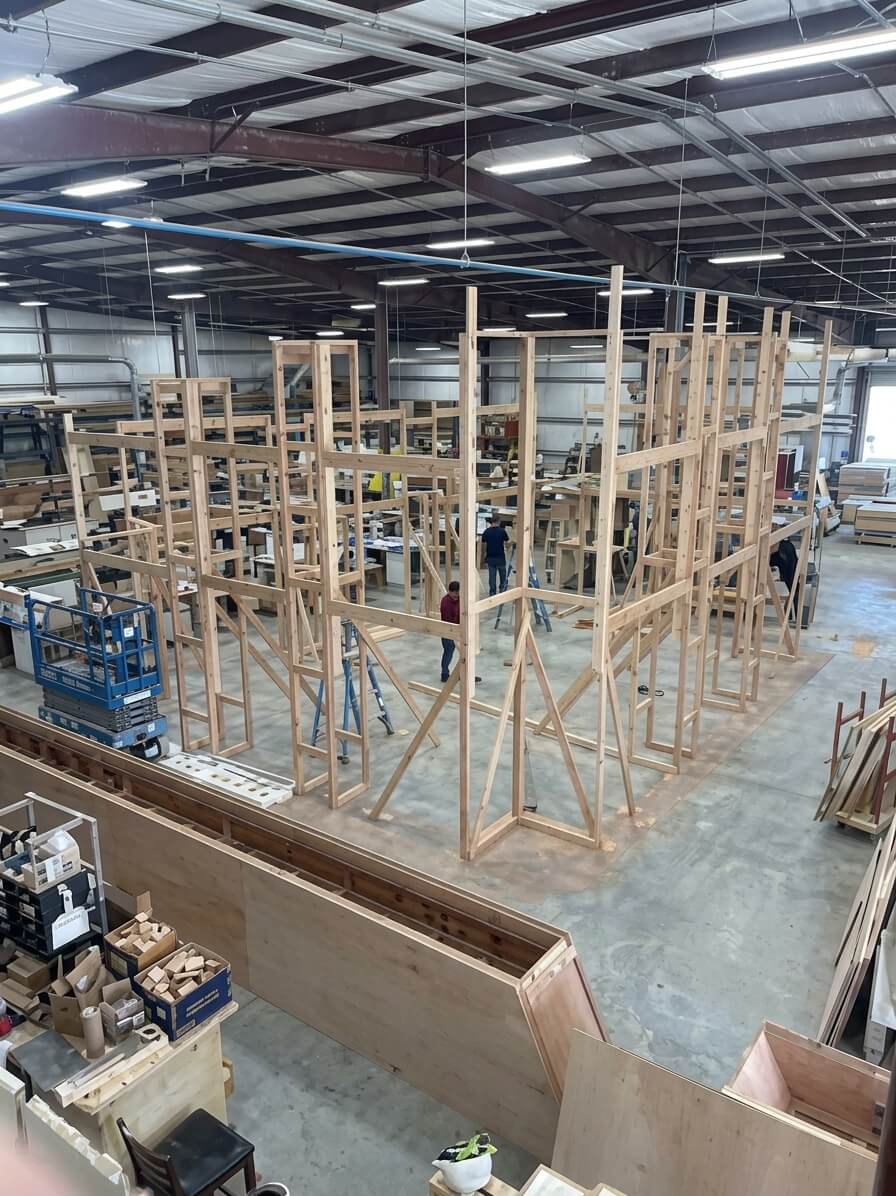

SHOP ASSEMBLY : PHASE 2
CAPITAL ONE : THE CLOUD
The cloud was one of our most complex assemblies, the size of the cloud and the sloping ceiling made fabrication a challenge. The process is as follows :
- Structural Steel was digitally scan as to our field measures.
- The digital scan was imported into our CAD program to begin fabrication.
- Framework was built to replicate the current site conditions of structural steel and the slope of the ceiling.
- Finished panels were fabricated and assembled in the shop.
- Cloud was disassembled and numbered for installation in field.
- We worked with union carpenters who reassembled onsite.

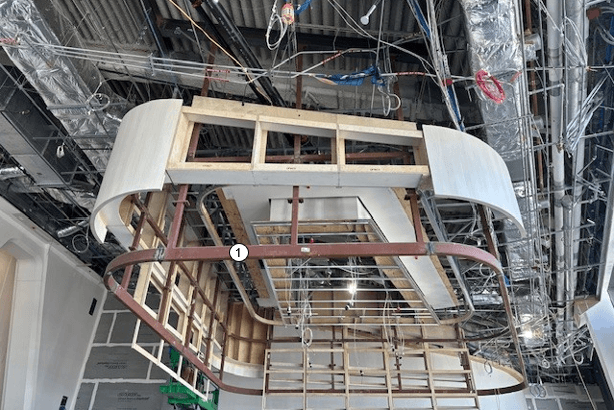

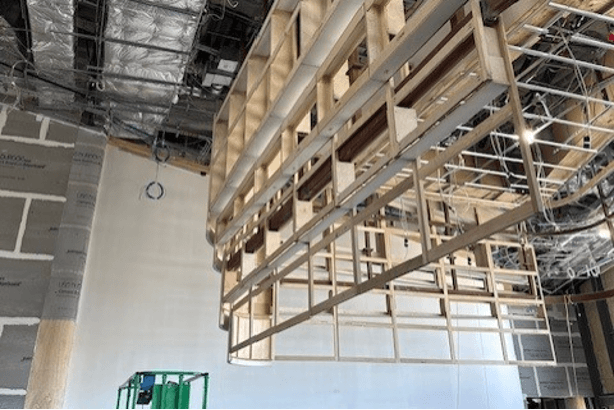

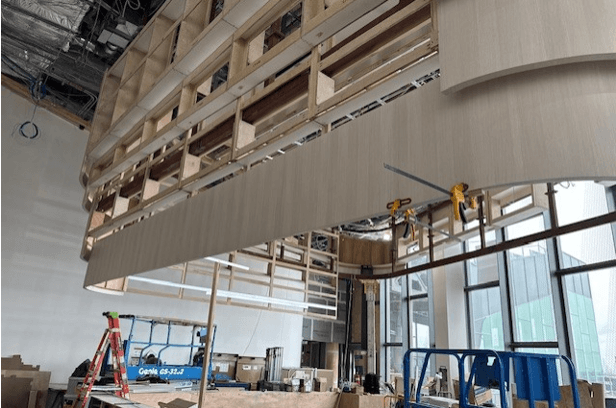

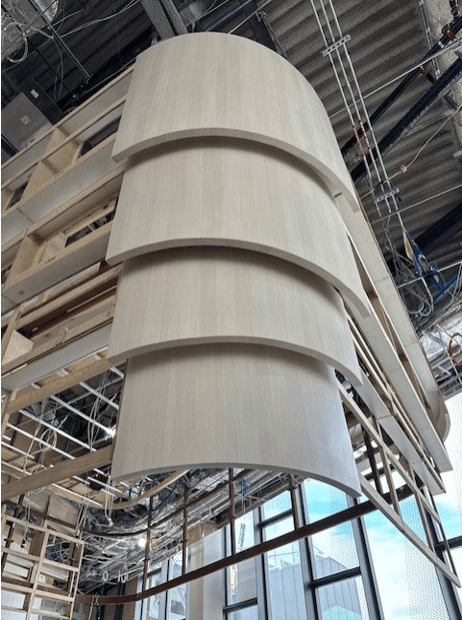

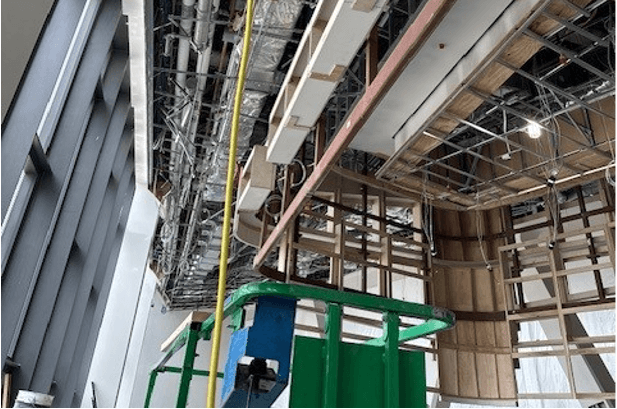

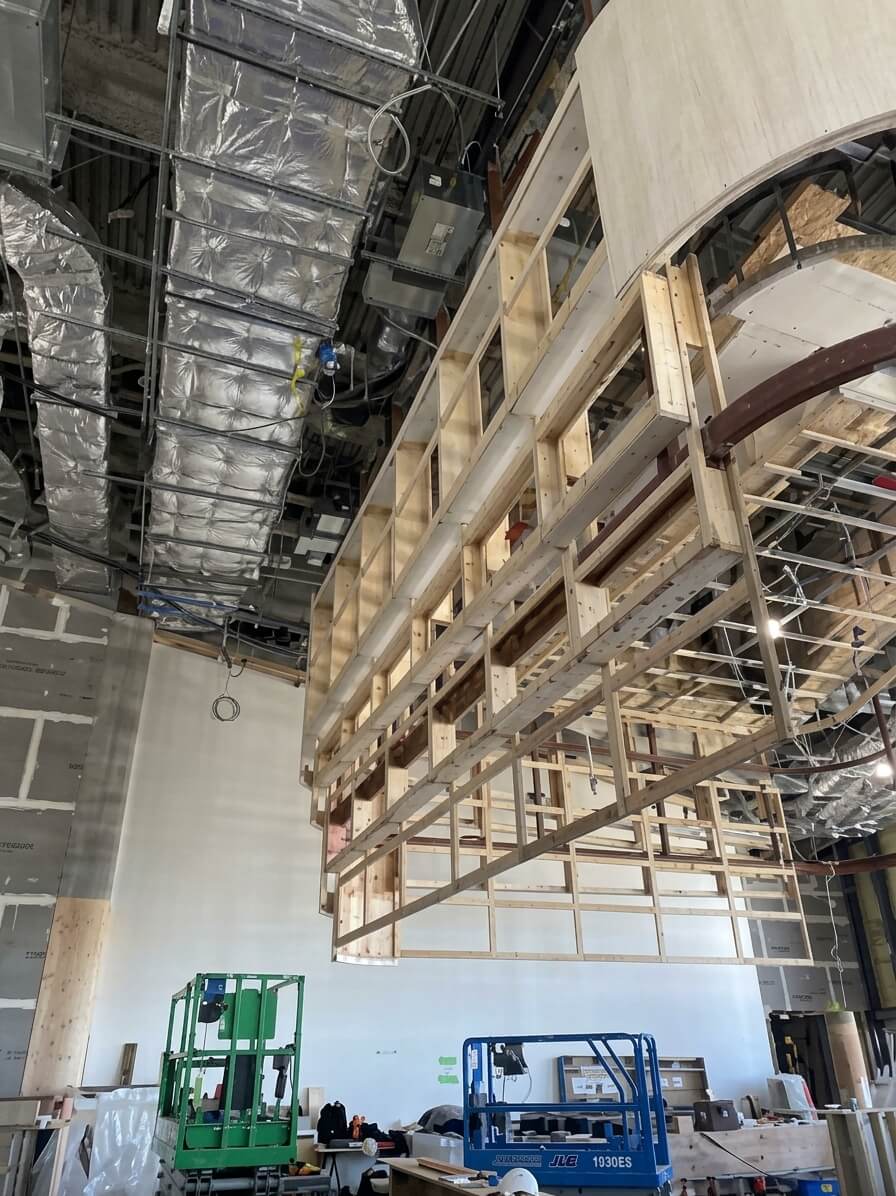

INSTALLATION : PHASE 3
CAPITAL ONE : THE CLOUD
1
01. Structural steel

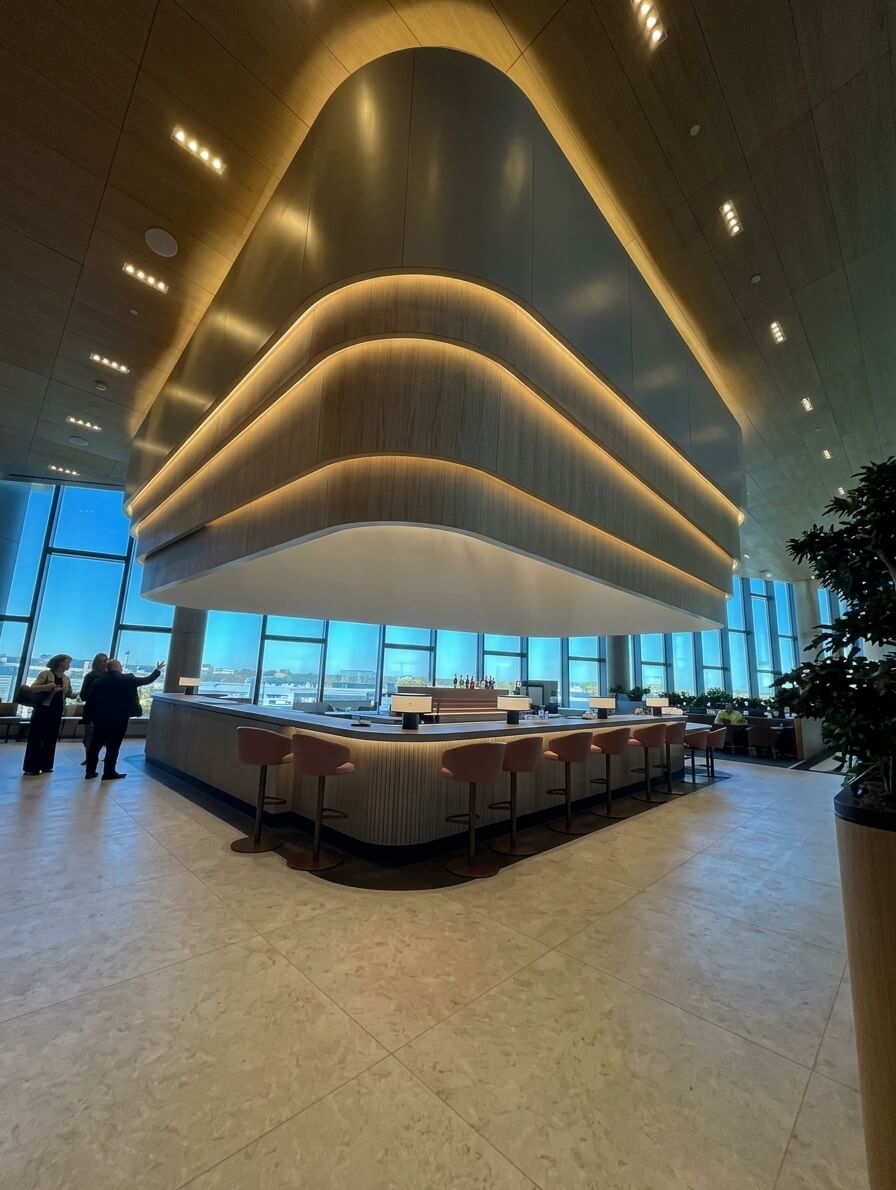

COMPLETED
CAPITAL ONE : THE CLOUD

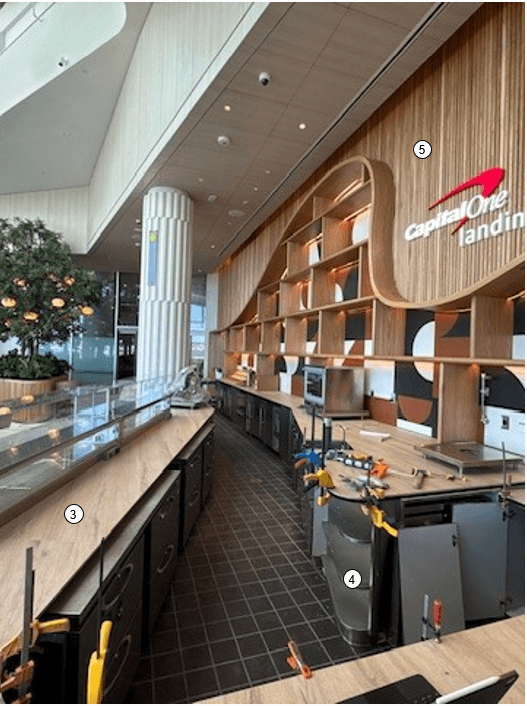

CAPITAL ONE : TERRACE BAR
LaGUARDIA AIRPORT

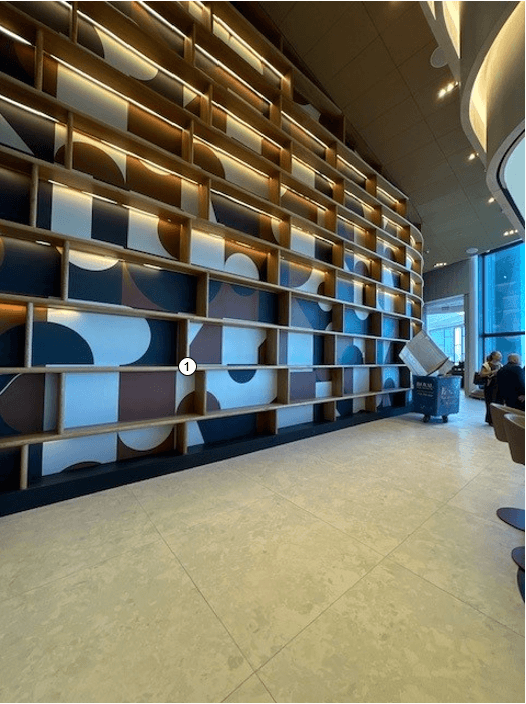

- 01. White oak shelving on curved wall

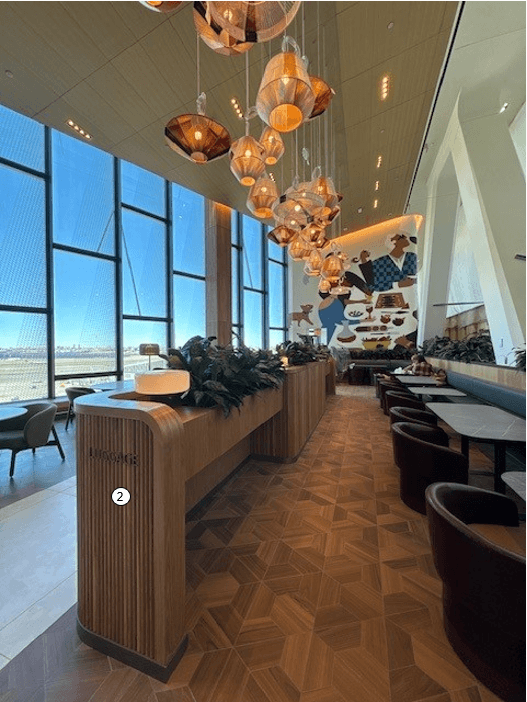

- 02. Luggage Storage : partition of white oak Tambours & Veneers
- 03. Italian porcelain bartop
- 04. Stainless steel cabinetry
- 05. White oak Tambours & shelving

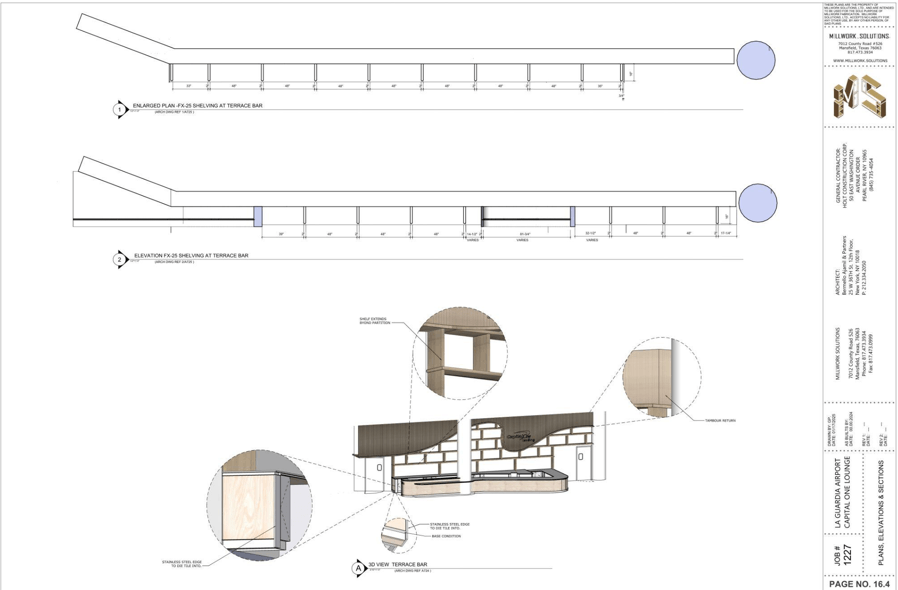

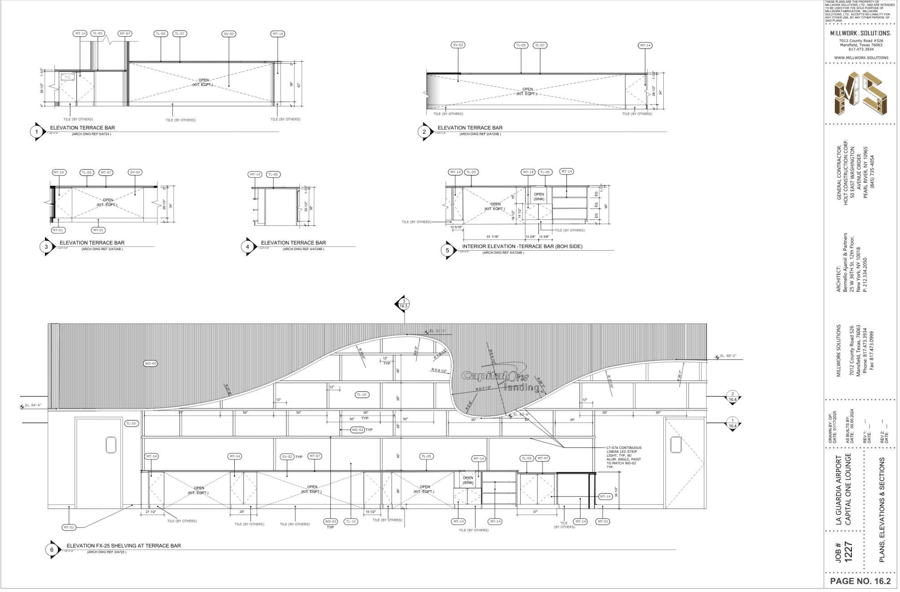

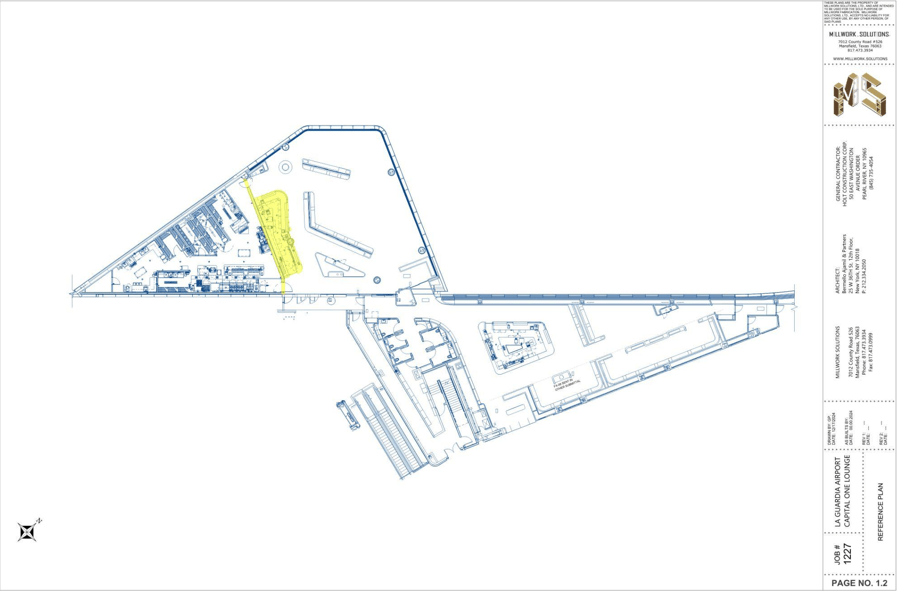

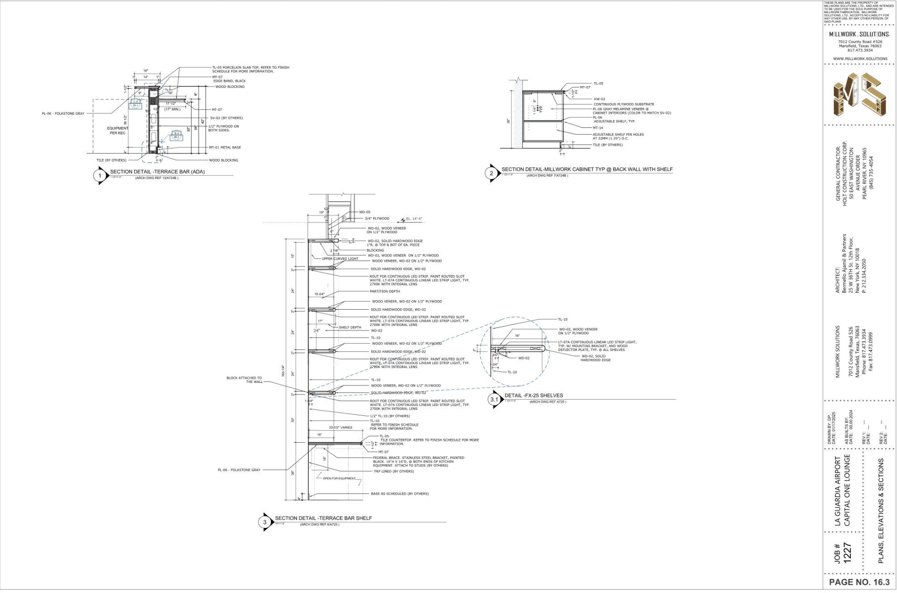

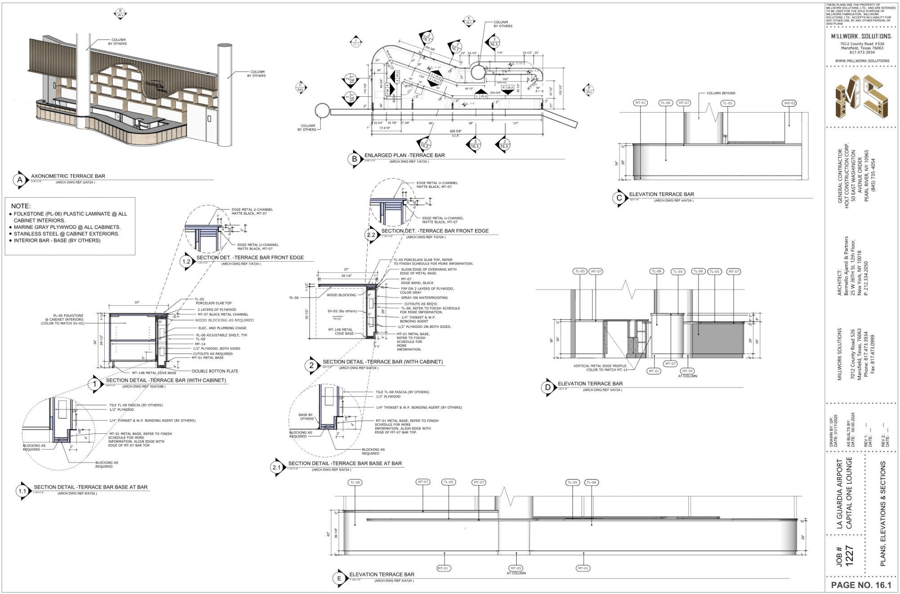

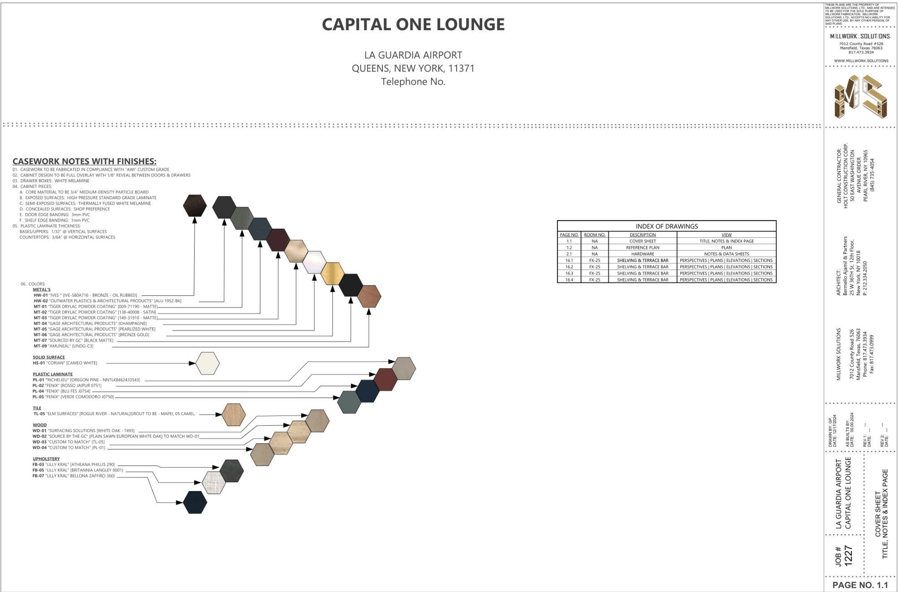

MILLWORK SHOP DRAWINGS
CAPITAL ONE: terrace bar
*All drawings derive from 3D models, presented in meetings which are then created into DXF parts to cut on a CNC router

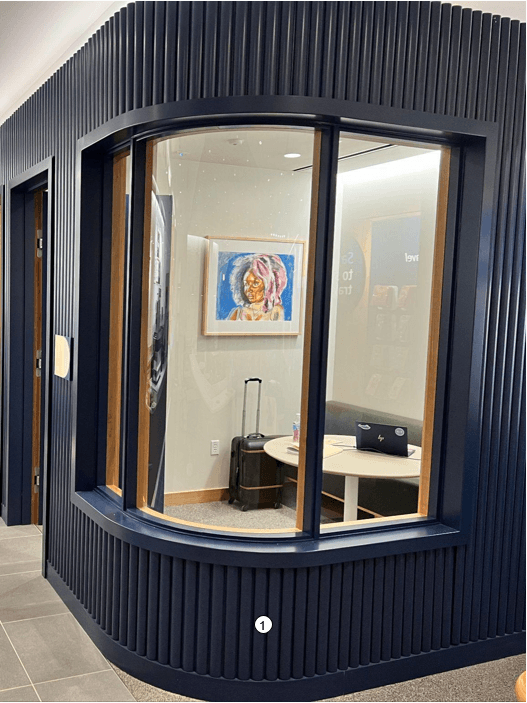

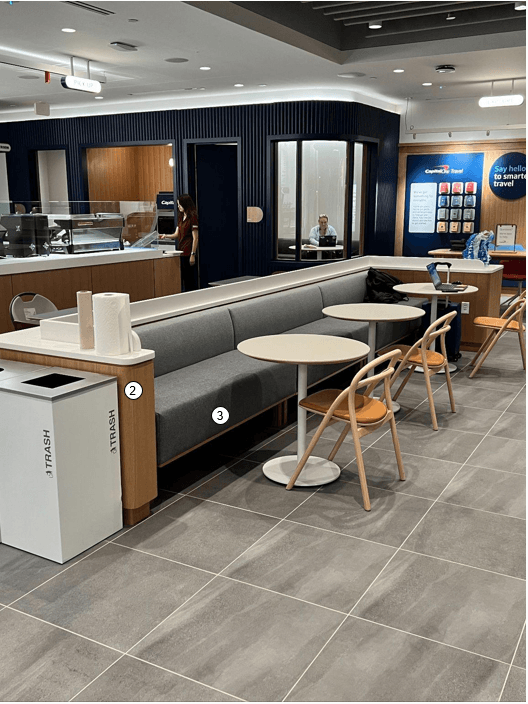

CAPITAL ONE : CAFE

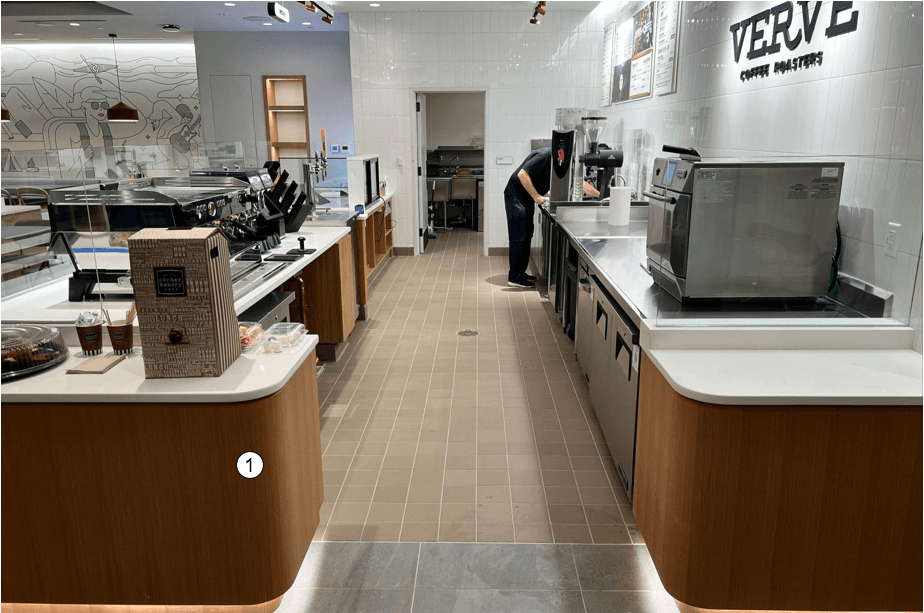

- 01. Blue conversion varnish (shop finish) with metal base and metal window Jamb / Casting
- 02. White oak millwork with quartz countertop
- 03. Custom banquette
- 04. White oak hardwood Jamb / Casting glass provided by millwork solution

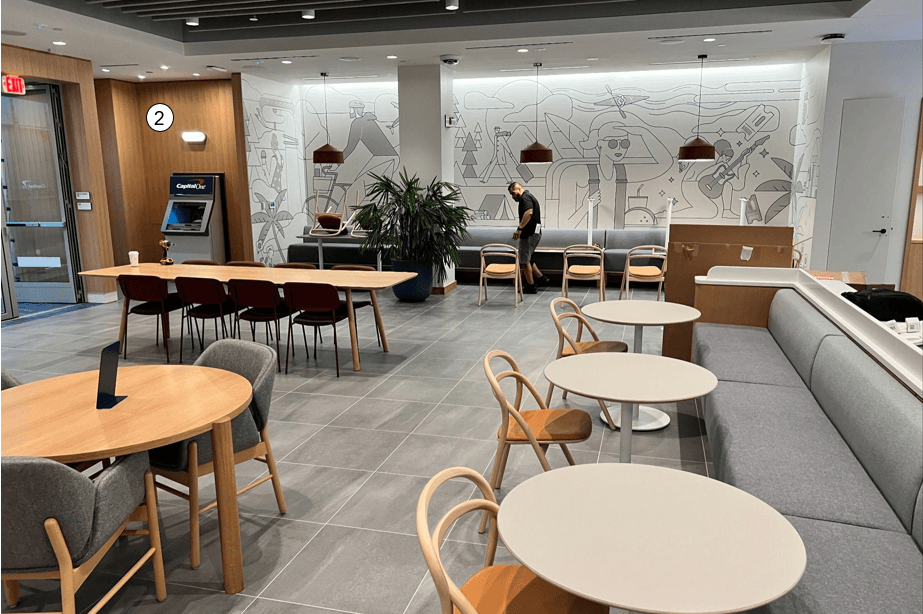

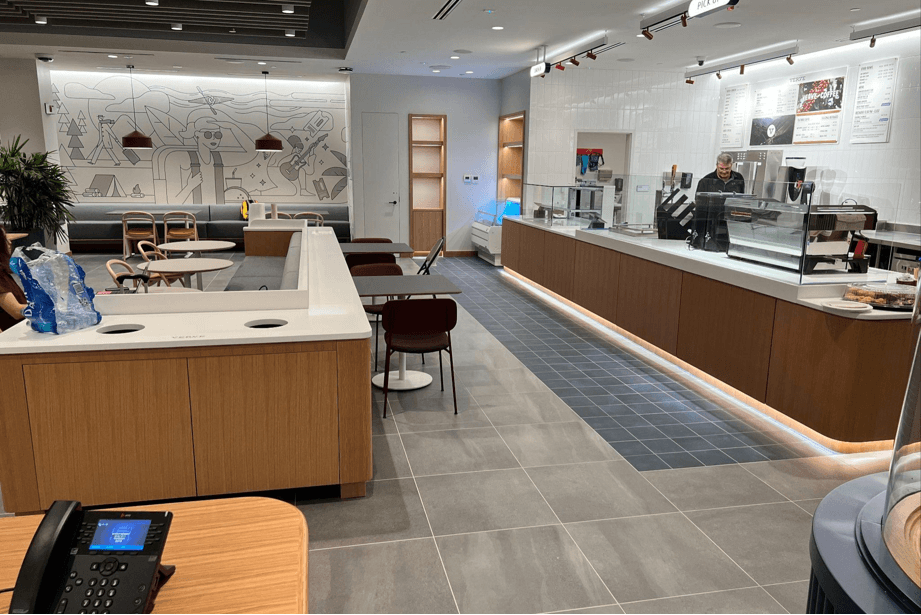

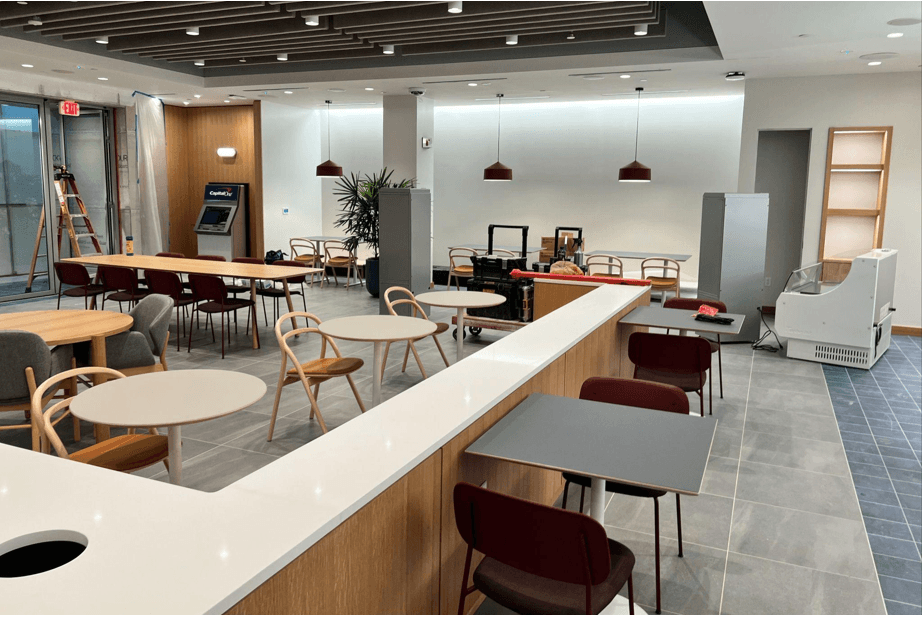

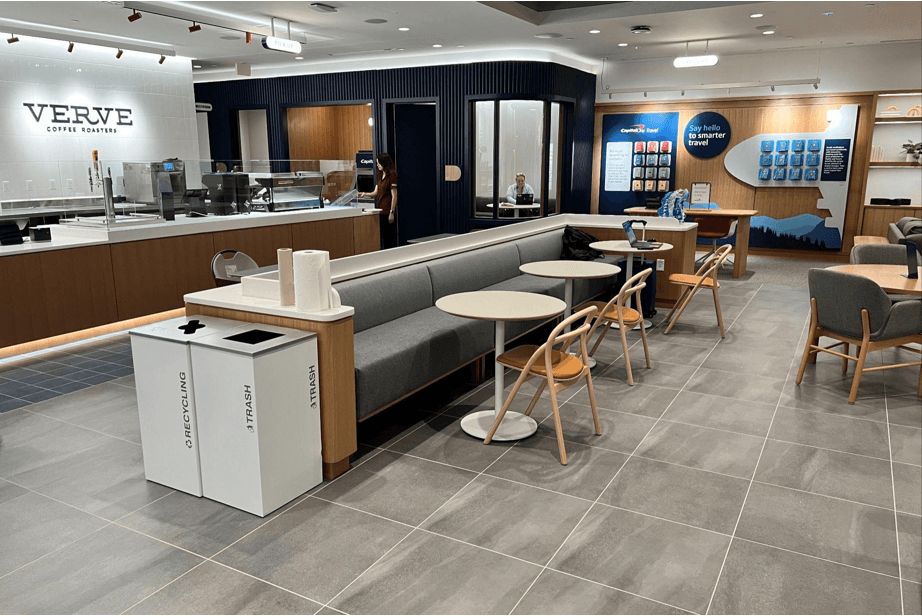

COMPLETED WORK
CAPITAL ONE : CAFE

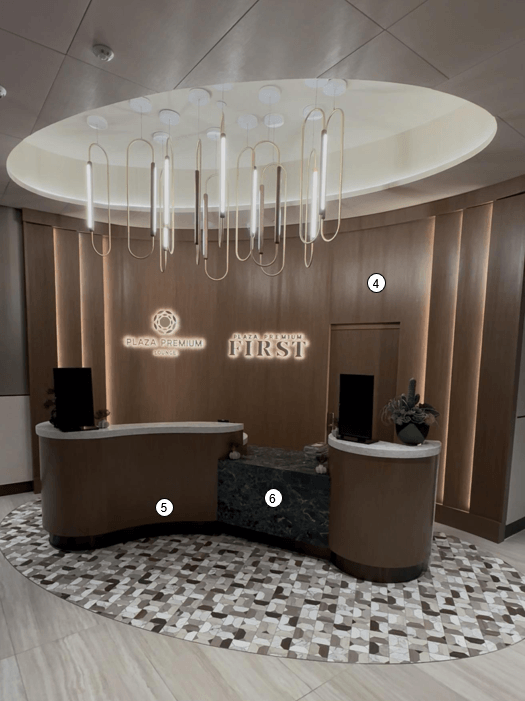

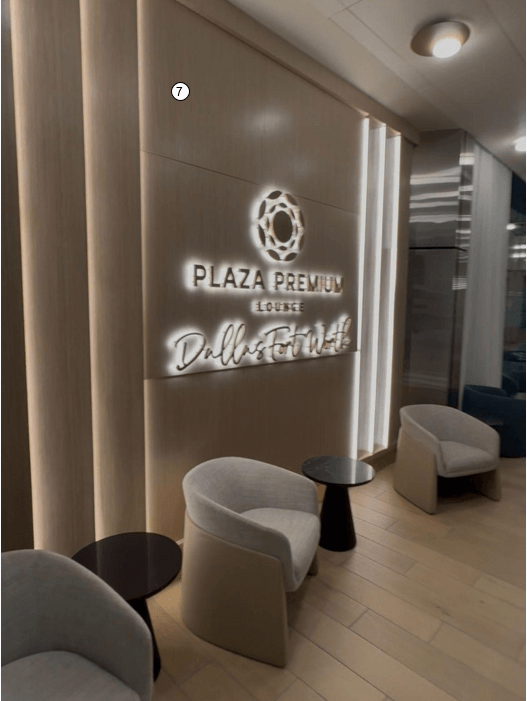

PLAZA PREMIUM : LOUNGE

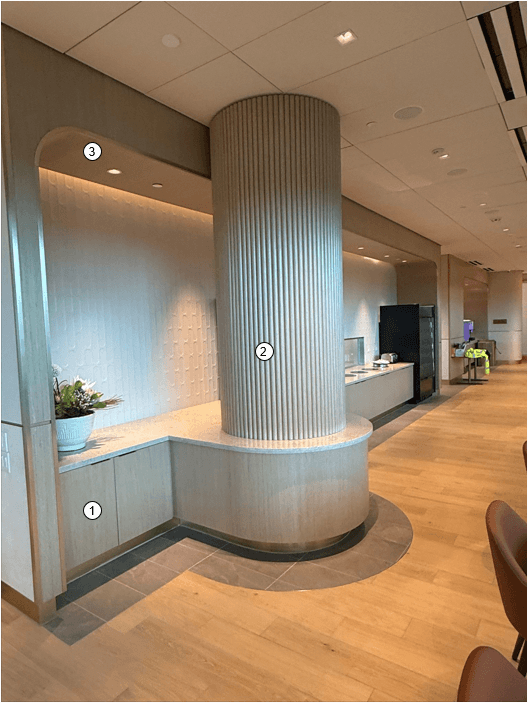

- 01. Eucalyptus Veneer cabinetry
- 02. Eucalyptus Tampours
- 03. Eucalyptus Paneling
- 04. Walnut paneling
- 05. Walnut reception desk
- 06. Marble countertop
- 07. Eucalyptus veneer paneling

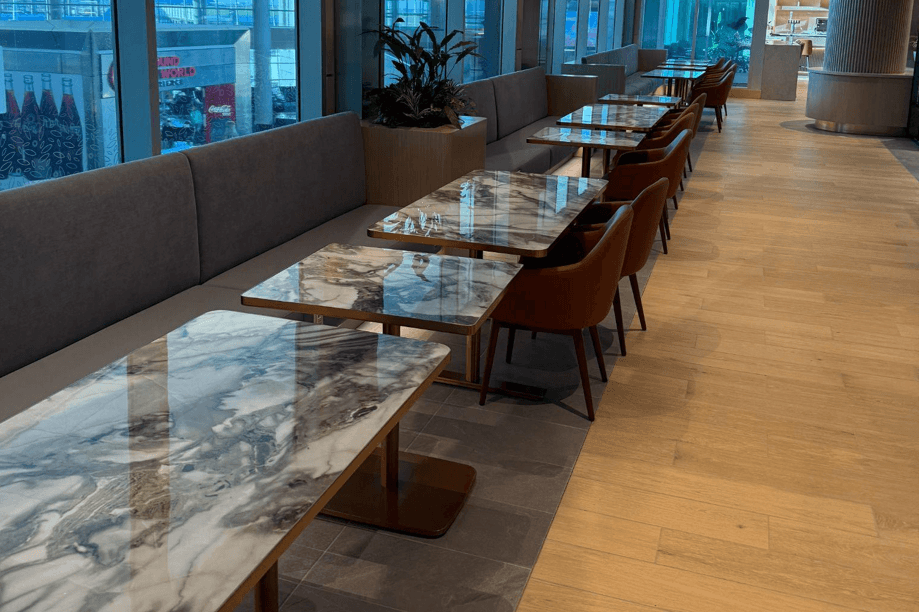

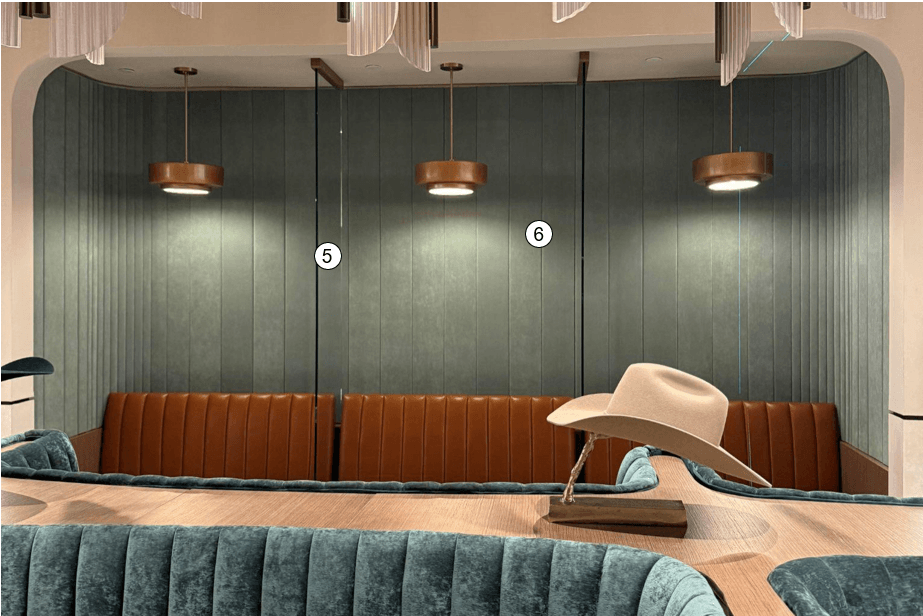

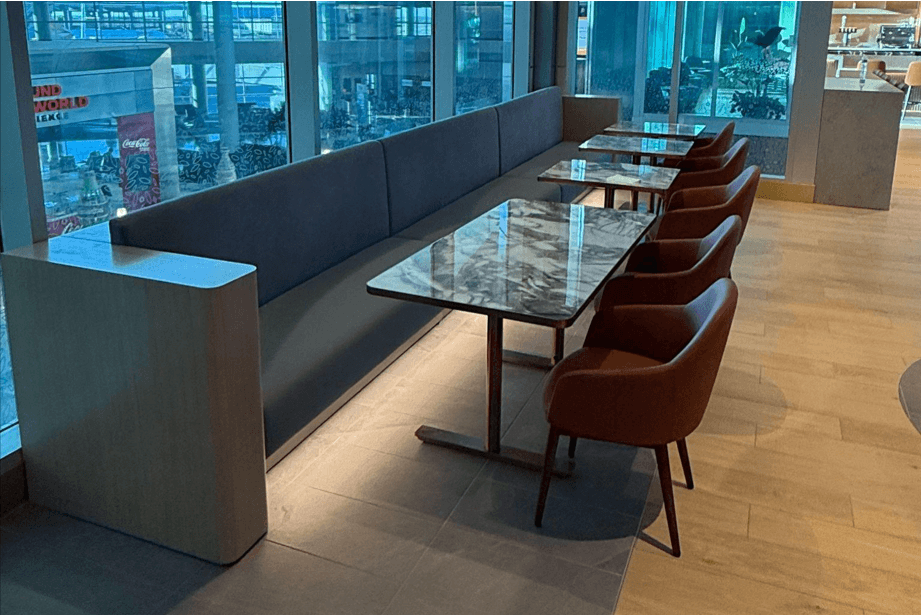

COMPLETED WORK

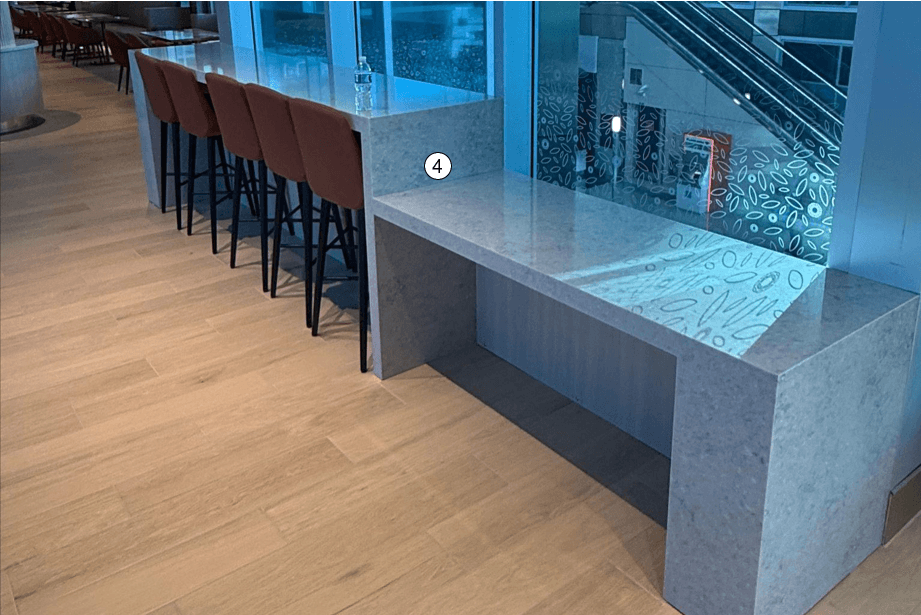

PLAZA PREMIUM : LOUNGE

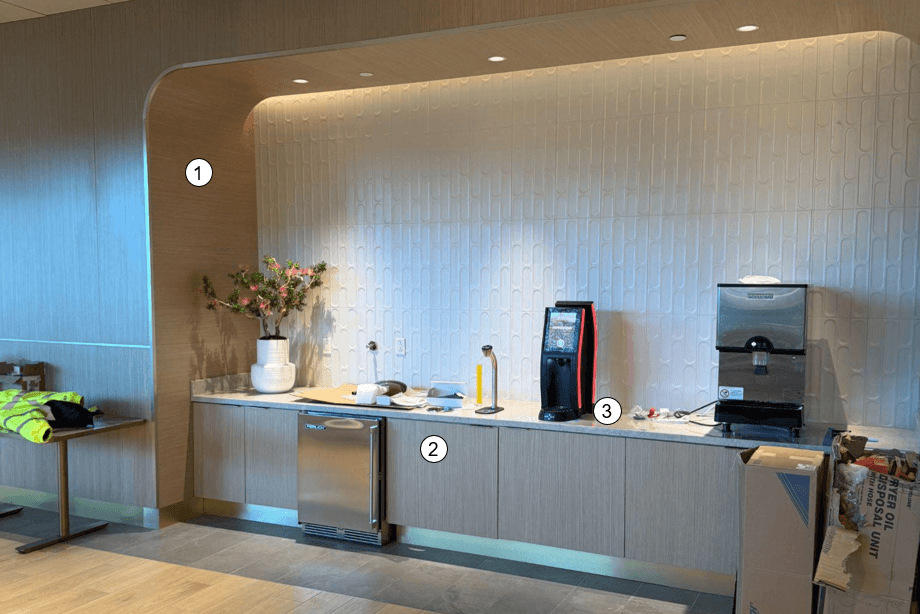

- 01. Walnut paneling
- 02. Walnut cabinetry
- 03. Quartz countertop
- 04. Quartz countertop
- 05. Glass partitions
- 06. Fabric cladding

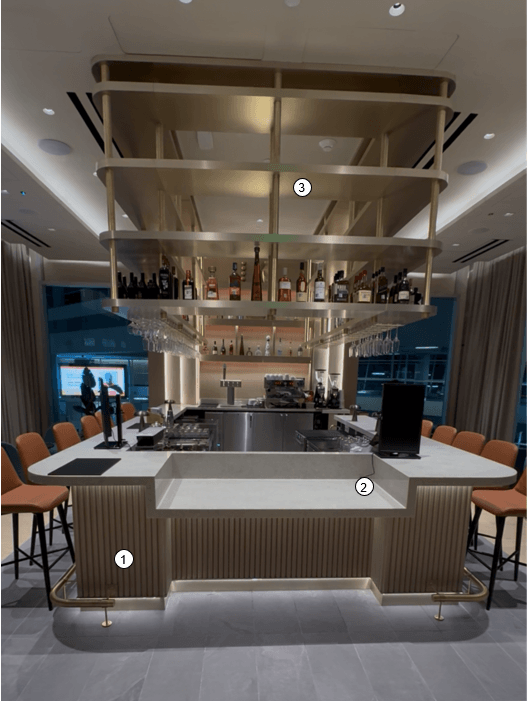

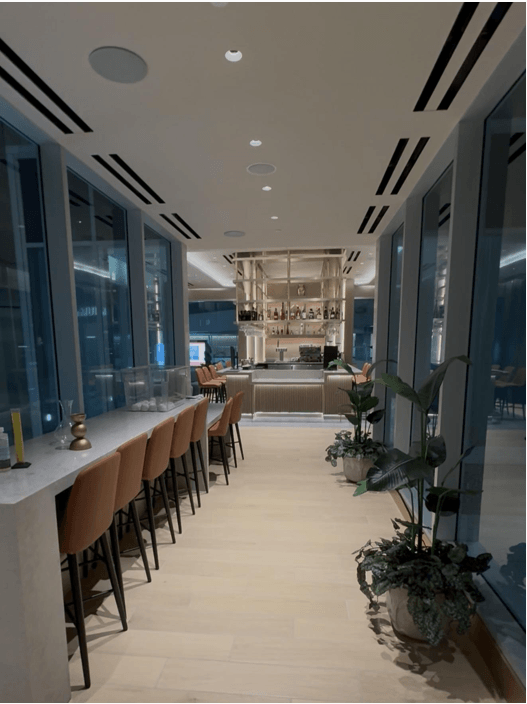

PLAZA PREMIUM : BAR
DFW AIRPORT
- 01. Eucalyptus tambour bar wall
- 02. Quartz bar top
- 03. Metal clad bottle shelf

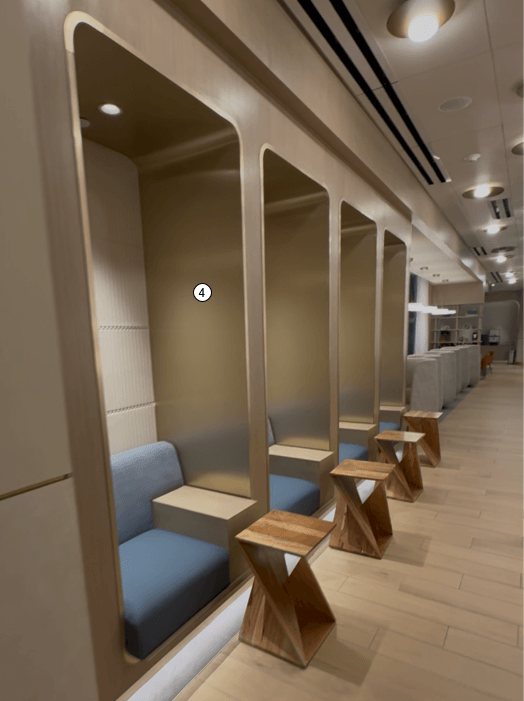

- 04. Seating Nooks : brass metal laminated with metal trim

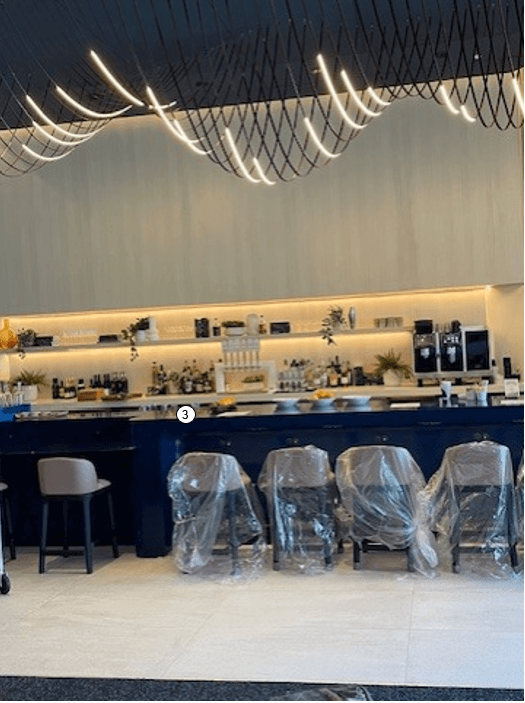

CAPITAL ONE LOUNGE: DFW
DFW AIRPORT

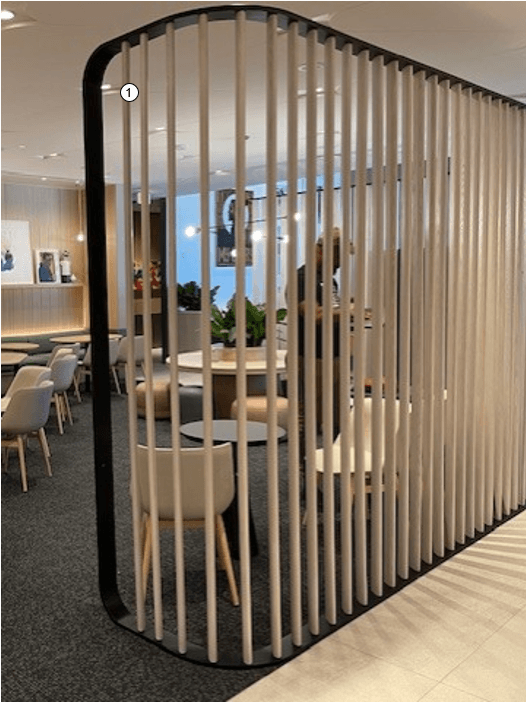

- 01. White oak fins in aluminum tube frame

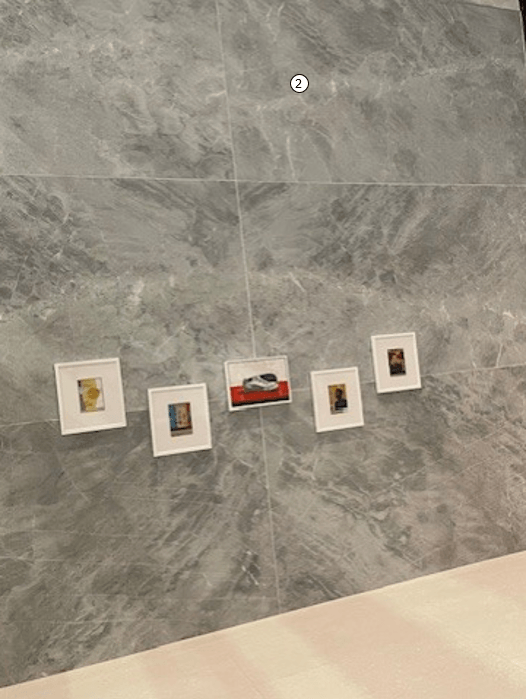

- 02. Italian Marble 2cm
- 03. Solid surface monolithic bar with plastic laminated back bar soffit & shelving

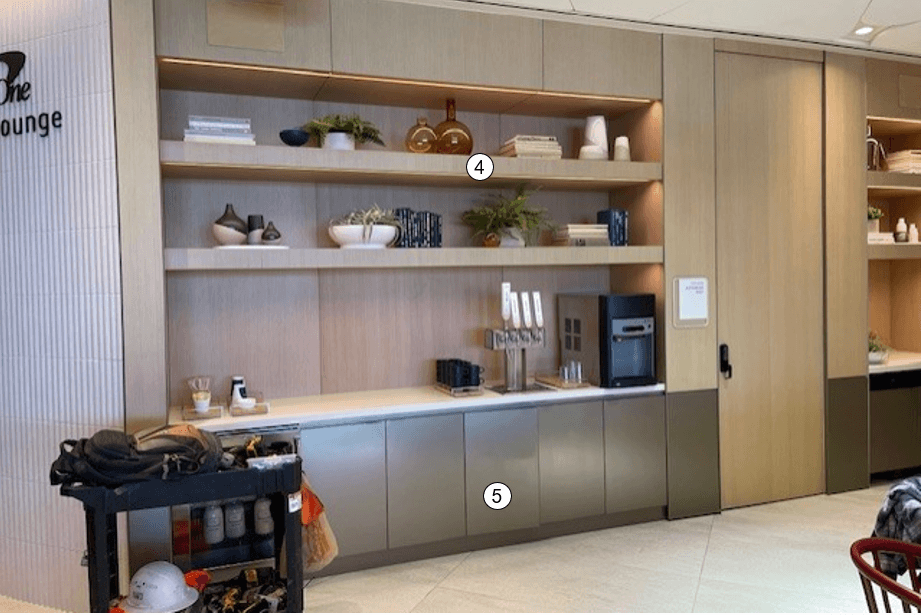

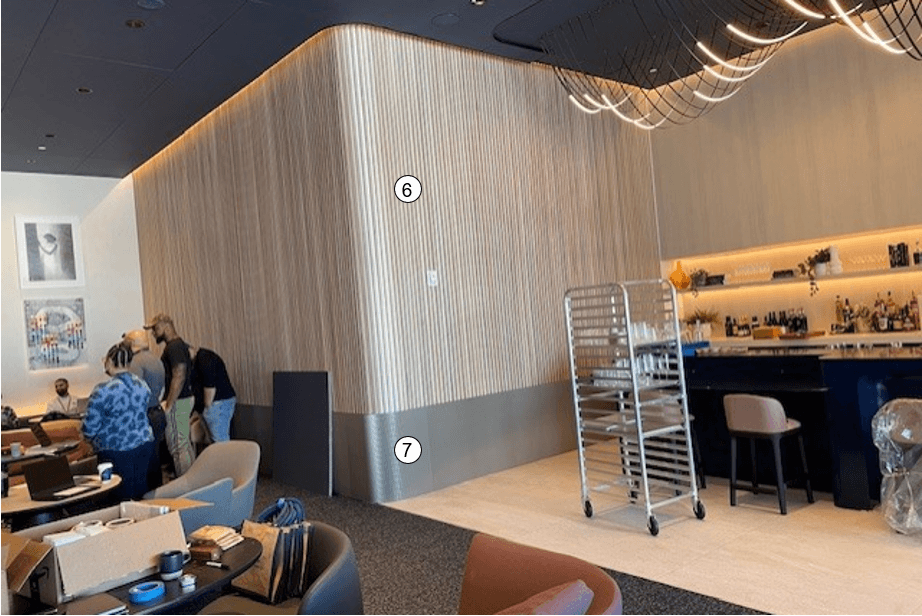

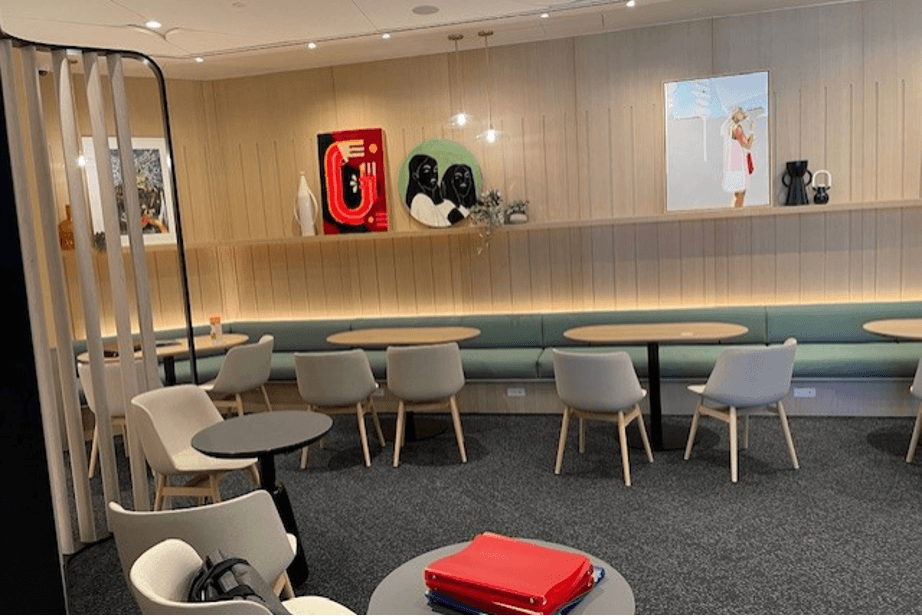

COMPLETED WORK

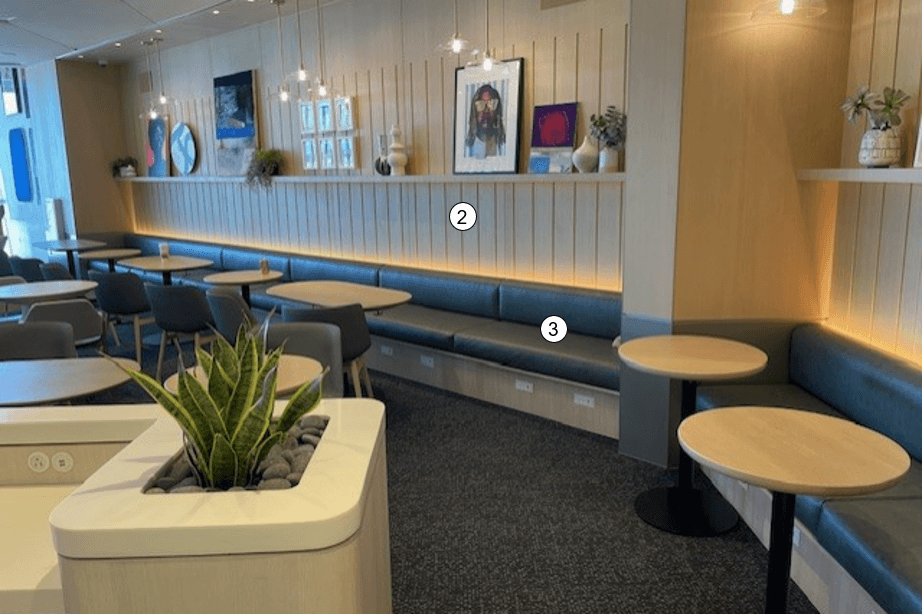

CAPITAL ONE LOUNGE: DFW

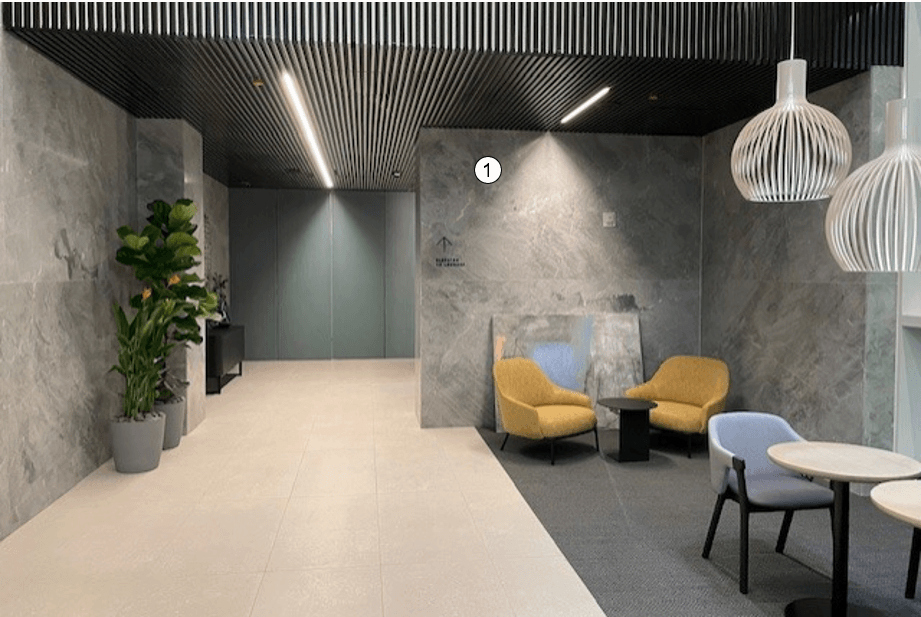

- 01. Italian marble
- 02. Custom banquette
- 03. Fluted white oak paneling
- 04. White oak shelving and paneling
- 05. Metal clad Cabinetry
- 06. White oak tambours
- 07. Metal wainscot

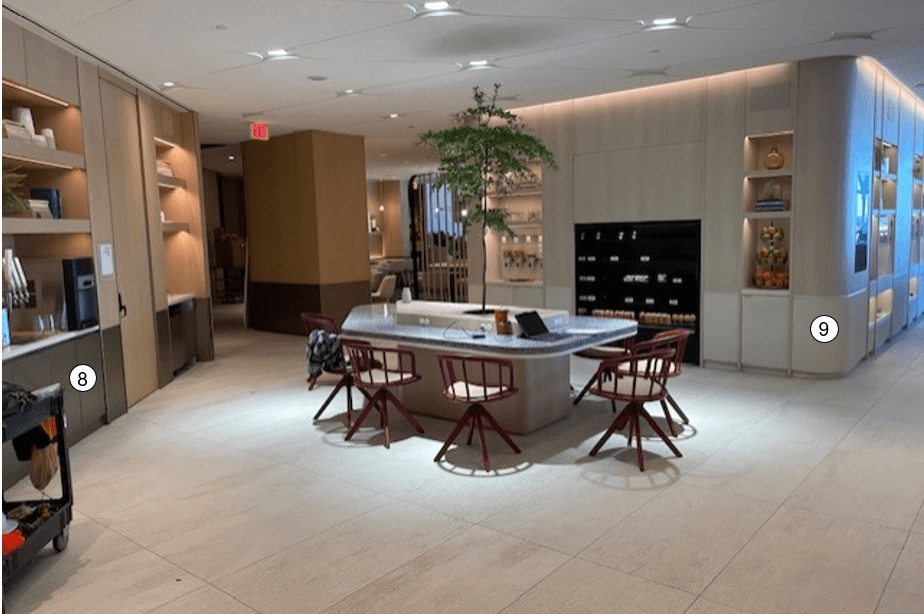

- 08. Metal clad cabinetry and wainscott, white oak paneling above
- 09. Plastic laminate grab & go with metal wainscot

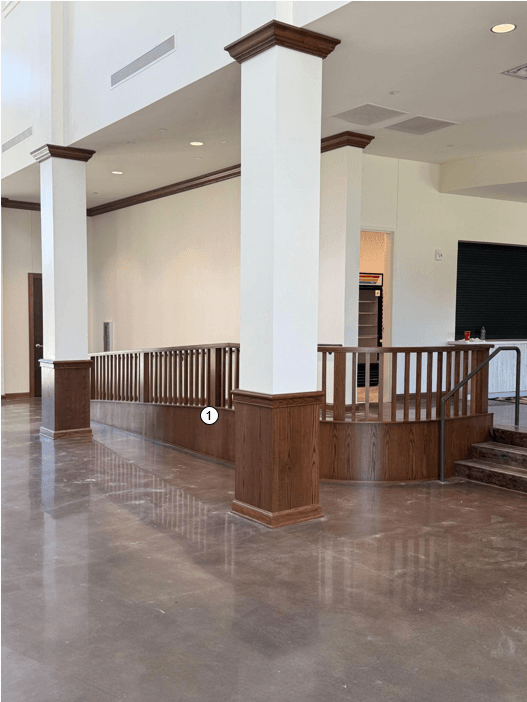

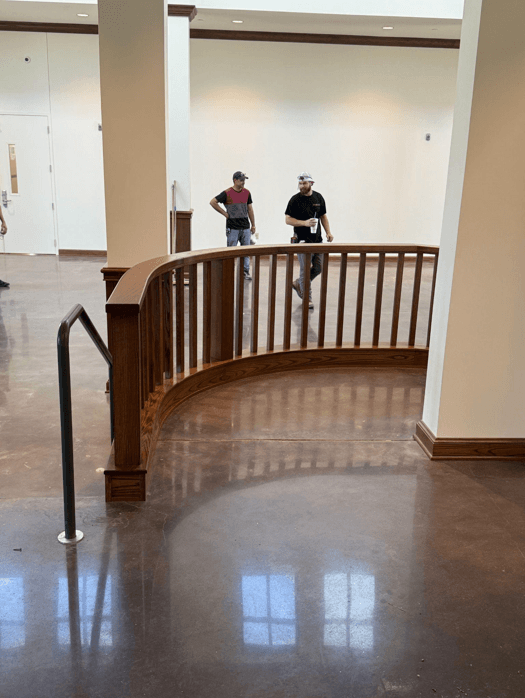

ST. JUDE CHURCH
- 01. Red oak trim shop finished

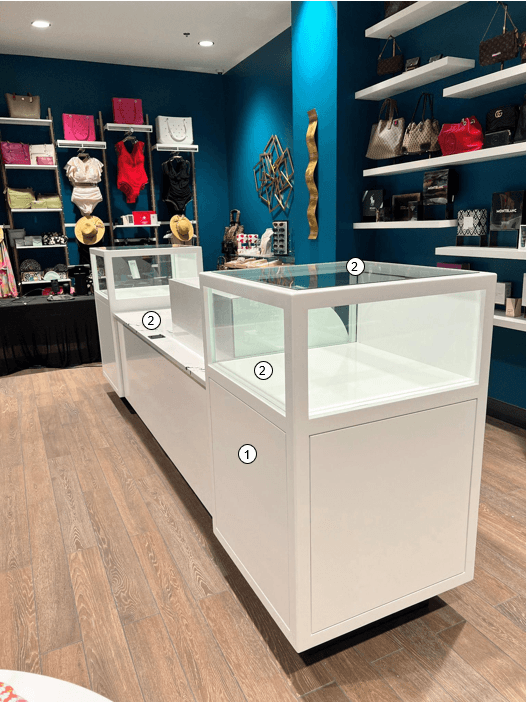

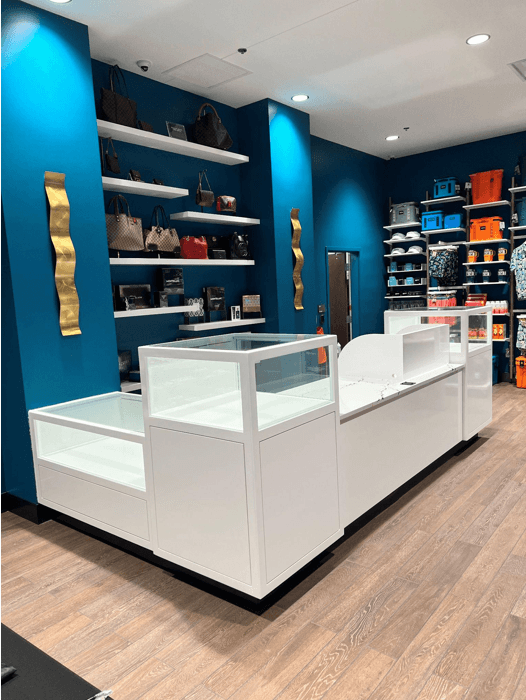

CASINO JEWELRY CASE
- 01. Gloss white conversion varnish, shop finished.
- 02. Scope : millwork, Glass, Quartz countertop , LED lights

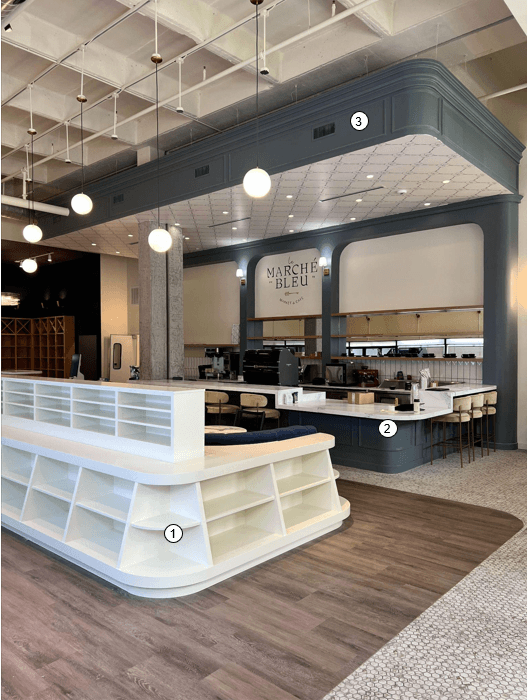

LE MARCHE BLEU
- 01. Shop finished custom store fixture
- 02. Quartz countertop with paneled diewall
- 03. Crowned mold soffit paneling

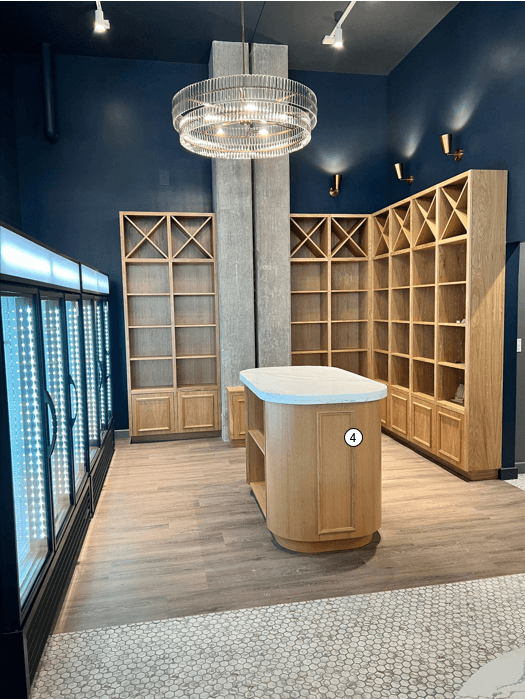

- 04. White oak wine cabinetry
- 05. Exterior trim for store front ( paint by others )
